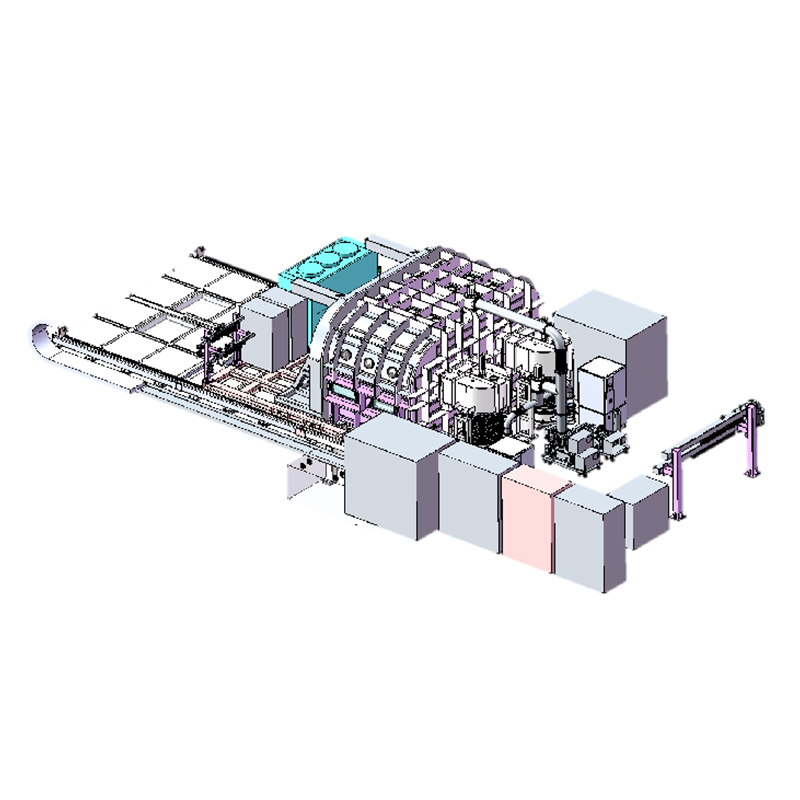

Vacuum Roll to Roll double-sided Resistance heating Evaporation system)(Capable of double-sided aluminum plating)

Working principle of evaporation coating machine

An evaporation coating machine is a commonly used surface treatment equipment, which forms a thin film by evaporating the material and depositing it on the substrate. This thin film can change the properties of the substrate, such as increasing hardness, improving wear resistance, and improving optical transparency. The principle of the evaporation coating machine is based on the evaporation process and the condensation of materials.
The evaporation coating machine is mainly composed of an evaporation source, substrate rack, vacuum chamber, and control system. The evaporation source is the source of the evaporated material, which usually uses an electron beam or electrical damping heating to heat the material to reach the evaporation temperature. The substrate to be processed is placed on the substrate rack, usually a flat material. The vacuum chamber is a space that keeps the evaporation process in a vacuum environment, and a high vacuum state is formed by extracting the indoor air. The control system is responsible for controlling the parameters and conditions of the entire evaporation process.
The working process of the evaporation coating machine is as follows: First, the substrate to be processed is placed on the substrate rack and placed in the vacuum chamber. Subsequently, the vacuum system is started to gradually extract the gas in the vacuum chamber to reach a high vacuum state. After reaching the required vacuum degree, the evaporation source is turned on and the evaporation material is heated. Under the action of heating, the evaporation material is gradually converted into steam and diffused in the vacuum environment. The vapor is deposited on the substrate along the direction of the vacuum chamber. When the desired film thickness is reached, the evaporation source is turned off and the evaporation process is stopped. Finally, the substrate holder is taken out of the vacuum chamber to complete the entire coating process.
The principle of the evaporation coating machine is based on the evaporation and condensation process of the substance. When the material is heated to a certain temperature, its surface molecules will obtain enough energy to overcome the surface tension and thus be converted into vapor. The vapor diffuses in a high vacuum environment and is eventually deposited on the substrate. During the deposition process, the vapor molecules interact with the atoms or molecules on the surface of the substrate to form a uniform film. The vacuum environment of the evaporation coating machine is conducive to reducing the collision of gas molecules so that the evaporated material can be deposited on the substrate in a relatively high-purity form, thereby obtaining a better coating quality.
The principle of the evaporation coating machine has the following characteristics:
1. High vacuum environment: The high vacuum state in the vacuum chamber is conducive to reducing the collision of molecular gases and reducing the pollution of impurities, thereby improving the coating quality;
2. Uniform deposition: The vapor of the evaporation material diffuses in the vacuum environment, making the film deposited on the substrate uniform and dense;
3. Simple operation: The operation of the evaporation coating machine is relatively simple. You only need to set the temperature, vacuum degree, and other parameters, and control the switch of the evaporation source;
4. Wide application field: Evaporation coating technology can be applied to a variety of materials and substrates, suitable for optics, electronics, materials, and other fields.
An evaporation coating machine is a surface treatment equipment based on the principle of evaporation and condensation. It heats the evaporation material in a vacuum environment, converts it into vapor, and deposits it on the substrate to form a thin film. The evaporation coating machine has the characteristics of a high vacuum environment, uniform deposition, simple operation, and wide application. Through this thin film deposition technology, the performance of the substrate can be improved to meet the needs of thin film materials in different fields.

share:
PREV: Vacuum Roll to Roll Double-sided Sputtering & E/B Evaporation combined systerm)(Capable of double-sided copper & aluminum plating) NEXT: Vacuum Roll to Roll Double-Sided Sputtering System)(Capable of double-sided matal plating materials
Product parameter
Substrate Material PET/PP 3 μm~ 12μm
Width 1700mm (effective deposition width: 1650mm)
Line Speed 20m/min (on each side 1μm x both sides)
Production capacity: about 1,20,000m2/month
Specification of coating Resistance heating evaporation, 32 boats
Operating air pressure: 0.005~ 0.01Pa
Surface treatment lon Bombardment

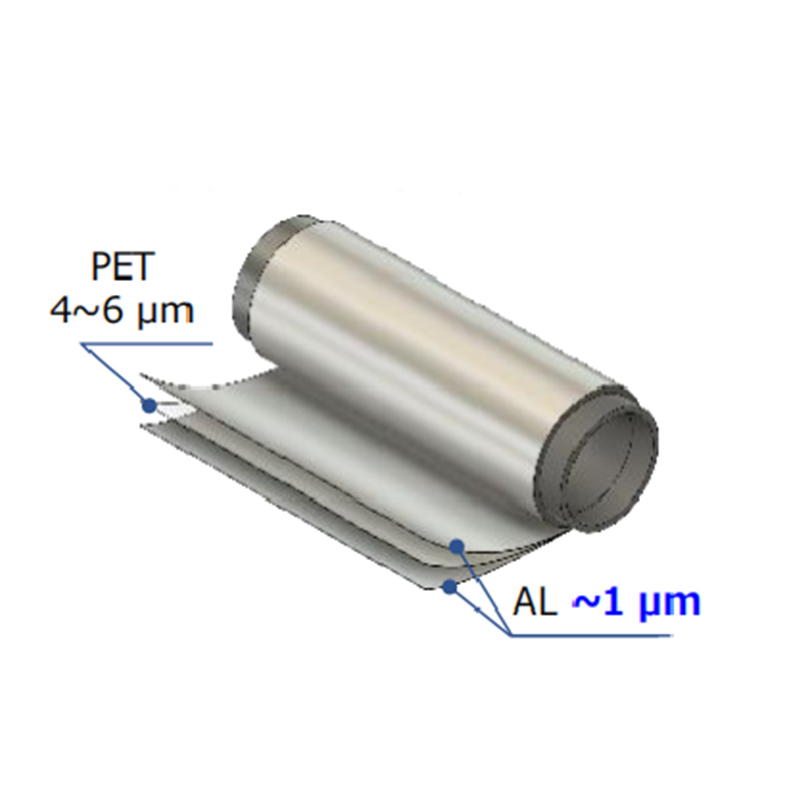

Membrane performance Membrane composition: electrode layer AL (evaporation)
Thickness distribution:±10 %
Membrane resistance: 40mΩ□
